Cooling kit

$0.99 USD - $15.99 USD
Cooling kit
  • Cooling kit
  • Cooling kit
  • Cooling kit
  • Cooling kit

This is an add-on for certain Vertical Dock models to deliver active external cooling to minimize CPU and GPU thermal performance throttling.

While peak performance is not improved, sustained performance is far more consistent with external cooling especially for gaming or other 3D-graphics intensive workloads. The fan is aimed along the center of rear chassis where the CPU/GPU is located for maximum cooling effect.

Performance notes:
  • We cannot guarantee any particular performance improvement on your system, but we have observed 20-30% gains in sustained CPU+GPU package power draw when running a Furmark stress test on a Pro 4 Core i5 (9.5W -> 12.5W) at ~20°C ambient temperature. On a Surface Go, sustained package power increased from 6W->8W.

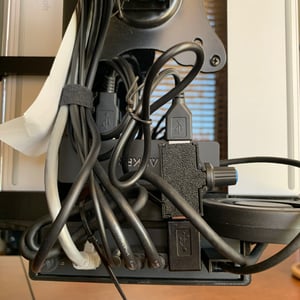

  • Fan speed must be adjusted slowly. When the fan speed controller is set to maximum or adjusted quickly, fan noise may increase without additional airflow.
  • At full speed, the fan is loud - approaching ~40 dBa, but you only need to run the fan at 30-50% speed to get decent cooling performance.

The upgrade kit Includes:
  • 75x15mm blower fan (USB powered)
  • USB fan speed controller

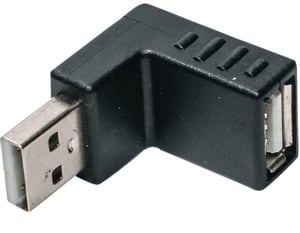

  • right-angle USB adapter
  • black PETG plastic mounting bracket
  • mounting hardware (nuts and bolts)

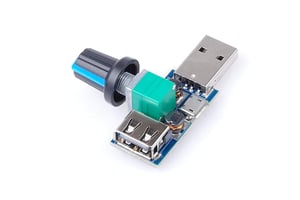

Speed Controller Tech specs:
  • input: ~4.5-5.2V via USB A plug or micro-USB receptacle
  • output: ~3.5V-7.5V via USB A receptacle
  • power: 5W maximum
  • case: black PETG plastic

Fan Tech specs:
  • Model: GDB7515 (GDSTime)
  • 75mm x x 75mm x 15mm
  • power: 2 watts (5V @ 0.4A) via USB A connector
  • bearing: sleeve (some units have ball-bearings)
  • air flow: ~6.8 cfm
  • static pressure: ~0.5 In H2O
  • noise: 34 dBA @ 3000 rpm, 27 dBa @ 2600 rpm

    Additional notes:

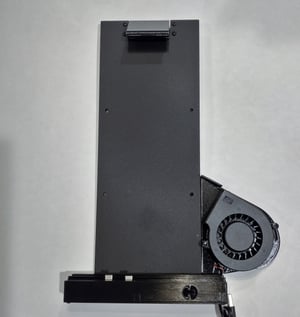

    • The cooler assembly attaches to the Vertical dock with a single rear screw (see photos)
    • Take extra care when using the cooling kit in landscape mode as it may be more difficult to Dock and undock your Surface.
    • running some fans past ~66% may increase fan noise but not increase airflow
    • adjust fan speed slowly - abrupt speed changes may stall the fan resulting in additional noise - if this happens, just reduce the fan speed, wait a few seconds, and try raising the fan speed again
    • not intended for use with PWM fans
    • Pro/Go installation
    • Book installation
